MAØ175×500/Ø460×470 500mm Four-High Reversible Cold Rolling Mill line Siemens 6RA80 series full digital

Name: MAØ175500Ø460470 500mm FourHigh Reversible Cold Rolling Mill line Siemens 6RA80 series full digital
Brand: MAZS
Price: 1 USD

Brand Name : MAZS

Model Number : MAØ175×500/Ø460×470

Certification : CE

Place of Origin : MADE IN CHINA

MOQ : 1sest

Price : USD

Payment Terms : 100% at sight LC or 30% deposit and 70% before shipping.

Supply Ability : 50 sets per year

Delivery Time : 120 working days

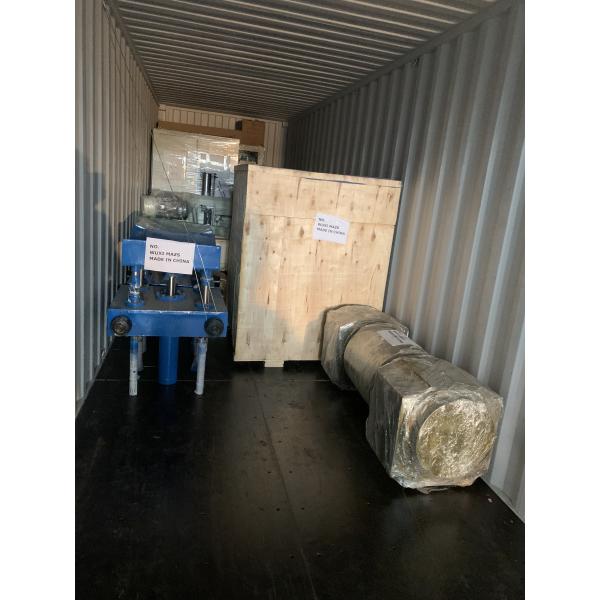

Packaging Details : Machine will be fixed inside container by steel wire(Export standard sea package)

Product name : 500mm Four-High Reversible Cold Rolling Mill machine

Incoming coil size : 2.0～3.0×400 mm

Output coil size : 1.0～2.0×400

Coil size : outer diameter Max. 1600 mm

Coil weight : Max. 5T

Coil inner diameter : 508mm

Rolling pressure : Max. 3500 KN

Rolling speed : Max. 150 m/min

Unit working height : 1000 mm

Unit working direction : left to right （it’s decided by user）

Contact Now

1. Product name

MAØ175×500/Ø460×470 500mm Four-High Reversible Cold Rolling Mill line Siemens 6RA80 series full digital

2. Application:

used for rolling of carbon steel and low alloy steel with width of 400mm, thickness of finished product1.0 mm～2.0 mmmm

3.Process flow:

Loading→Uncoiling→Pinch→Straight head flattening Cutting→welding-loop(welding test seam)→vertical roll center →

Five roll was built→ Four-high cold rolling mill → Recoiler→Unloading

4. Main Technical Specification:

No.	Technical parameter
1	Raw material status	Plain carbon steel
2	Incoming coil size	2.0～3.0×400 mm
3	Output coil size	1.0～2.0×400 mm
4	Rolling pressure	Max. 3500 KN
5	Rolling speed	Max. 150 m/min
6	Uncoiling tension	Max. 30 KN
7	Recoiler drum expansion diameter	Max. 508mm; Min. 495 mm

5.scope of supply

No	Content of Supply	Qty.	Supplier	buyer	Remark
I	Mechanical part
1	Coil car	1 set	√
2	Uncoiler	1 set	√
3	Straightener	1 set	√
4	Horizonal cutting machine	1 set	√
5	Welding platform	1 set	√
6	Loop	1 set	√
7	Enter pinch and feeding	1 set	√
8	Five roller biuld up	1 set	√
9	Main mill machine	2sets	√
10	universal spindle	4pcs	√
11	Combined gear box	1 set	√
12	Exchange roller unit	2 sets	√
13	Exit plate	1 set	√
14	Recoiler	1 set	√
15	Unloading trolley	1 set
16	Base and coupling	1 set
II	Hydraulic equipment
1	Thin oil lubricating station	1 set	√
2	Low-pressure hydraulic station	1 set	√
3	Hydraulic station for roller bending	1 set	√
4	Emulusion lubricating system	1 set	√
III	Motor & electrical control equipments
1	Main motor	2set	√
2	Recoiler motor	1 set	√
3	Transmission device and PLC system	1 set	√
4	DC drive device of main rolling mill	1 set	√
5	DC drive device of coiler	1 set	√
6	Operation box	1sets	√
Iv	Other parts
1	Thickness gauge device	2 sets		√	Provided by user
2	Installation of cables and wires in workshop	1 batch		√	Provided by user
3	Workshop piping	1 batch		√	Provided by user
4	Foot bolt and block	1 batch		√	Provided by user
5	Workshop fence and cover plate	1 batch		√	Provided by user
6	Low voltage distribution cabinet	1 pcs		√	Provided by user
7	Harmonic system	1 set		√	Provided by user
